Compact Neodymium Line Array Speaker System 12 Inch For Indoor Club

  • 1
  • 2
  • 3

RMS power : LF: 350W

Model : AF-12

Impedance : 8 ohm

Cabinet : Russia birch plywood, dark grey brown polyurea

Certification : CE, ROHS

Price : contact us for price

Packaging Details : carton

Connector : 2NL4

Supply Ability : 500pcs/month

Place of Origin : Made In China

MOQ : 2

Model Number : AF-12

Payment Terms : T/T

Brand Name : lmhf audio

Size : 360*760*440mm

Net Weight : 38 kg

Delivery Time : 10-15 days

components : LF: 1*12 inch, HF: 3 inch, neodymium

Frequency : 55 Hz - 20 KHz

Max SPL : 139 dB

Contact Now

indoor club speaker 12 inch compact neodymium line array
The AF12 is a constant curvature enclosure. it is designed to generate a narrow coverage combined to a high SPL. AF12 operates over a nominal frequency range of 55 Hz to 20 kHz. This response can be extended down to 32 Hz with the SB18m subwoofer. The HF waveguide generates a 15° x 90° symmetric directivity pattern.

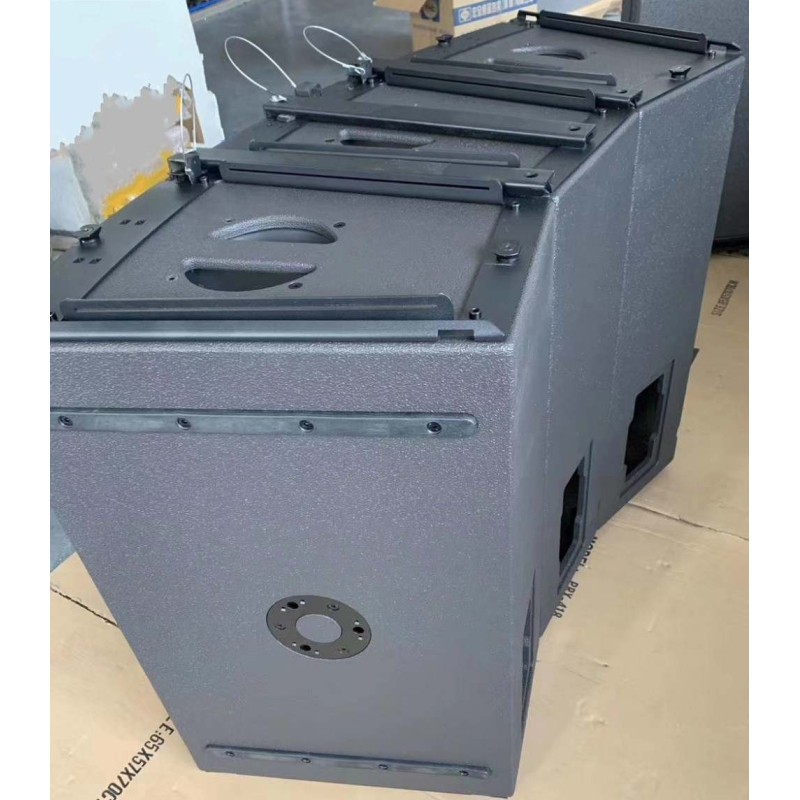

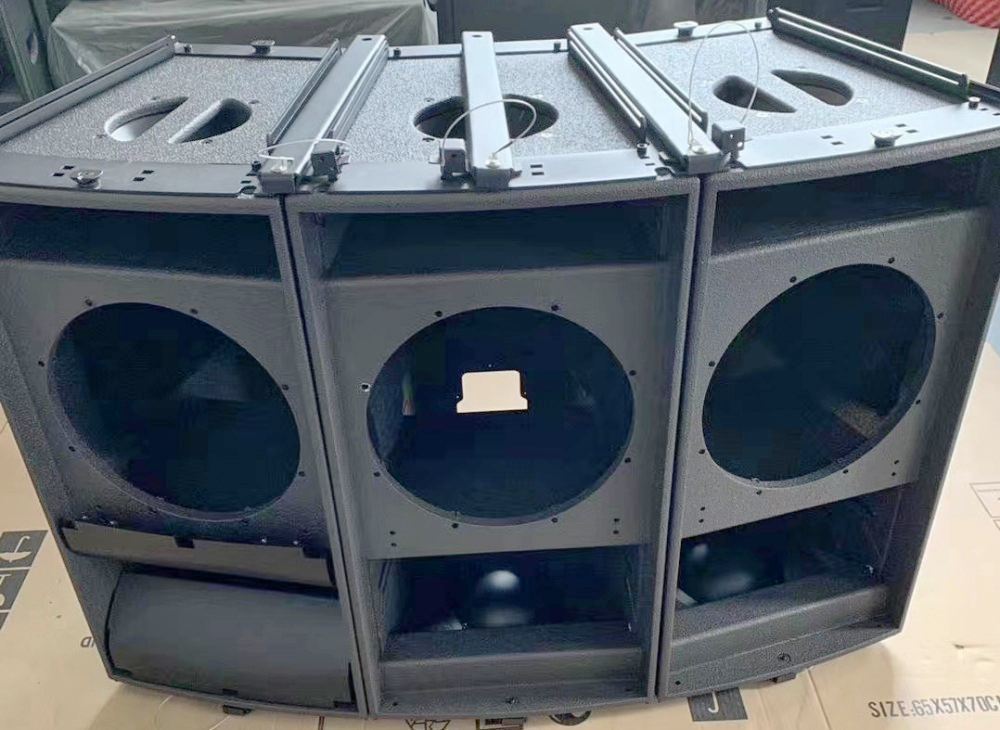

The cabinet is made of first grade birch plywood for optimum acoustical and mechanical integrity. A pole-mount socket receptacle is integrated into the cabinet and allows mounting the enclosure on top of an subwoofer.
Technical Specifications
Model AF-12
RMS Power 350W
Components LF: 1*12", HF: 3", neodymium
Impedance 8 ohm
Frequency Response 55 Hz - 20 KHz
Max SPL 139 dB
Connector 2NL4, Neutrik
Size 365*760*440mm
Net Weight 38 kg
Cabinet Russia birch plywood
Spray Dark grey brown polyurea
Compact Neodymium Line Array Speaker System 12 Inch For Indoor ClubCompact Neodymium Line Array Speaker System 12 Inch For Indoor Club
